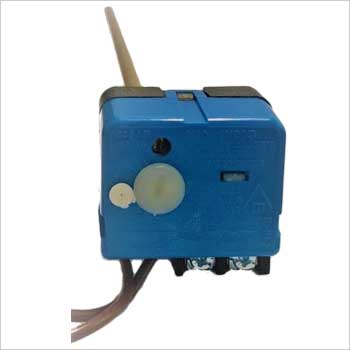

Thermostat (TCT -001)

Description of Thermostat TCT-001

One phase Immersion Thermostat with on-pole mechanism providing double safety to make it 100% safe to use.

Features of Thermostat TCT-001

• Double safety, both are on pole dependent ensuring 100% safety.
• Outer body is heat resistant and has no electric conductivity ensuring thermostat safety.
• 70,000 cycles guaranteed.
• Factory pre-set fixed temperature, OEM adjustable or end-user adjustable temperature.
• Bi-metal independent.
• Israel 808 and ISO 9001:2015 Standard approved.

Operation of Thermostat TCT-001

The differential expansion of the sensing element causes the opening of a snap-action switch in the thermostat. In case of abnormal temperature rise, the on-pole mechanism senses the temperature at the stem head to disconnect the contacts at prescribed second safety temperature. The limiter is manually resettable.

Technical Characteristics of Thermostat TCT-001

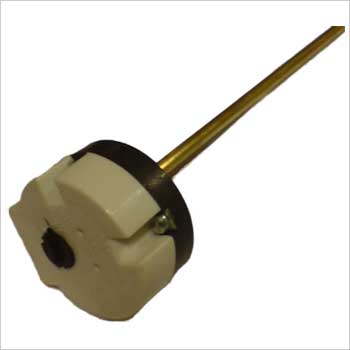

Thermostat (TCT -002)

Description of Thermostat TCT-002

It is a Thermostat with single pole stem control and double pole safety limiter.

Features of Thermostat TCT-002

• Combined control and safety function.
• Direct plug-in to heating element to reduce wiring and mounting costs
• Tamper proof housing
• Factory pre-set fixed temperature, OEM adjustable or end-user adjustable temperature
• Connection for signal lamp

Operation of Thermostat TCT-002

The differential expansion of the sensing element causes the opening of a snap-action switch in the thermostat. In case of abnormal temperature rise, the on-pole mechanism senses the temperature at the stem head to disconnect the contacts at prescribed second safety temperature. The limiter is manually resettable.

Technical Characteristics of Thermostat TCT-002
