SLIDE SWITCH
A slide switch, also known as a slider switch, is a type of electrical switch that controls the flow of current by sliding a switch handle or actuator. It's a maintained-contact switch, meaning it stays in one state (on or off) until manually moved to the other state. Slide switches are commonly used in various applications, including electronics, appliances, and instruments, to turn circuits on or off, select modes, or adjust settings.
Key Features and Considerations::
- Basic Function: Slide switches function by physically connecting or disconnecting a circuit when the handle is moved.
- Types: Common types include single-pole, double-throw (SPDT) and single-pole, single-throw (SPST) switches.
- Applications: Slide switches are used in a wide range of applications, such as consumer electronics (radios, music players), appliances (kitchen appliances), and various electronic devices.
- Mounting: Slide switches can be mounted in various ways, including surface mount, through-hole mount, and panel mount, depending on the application.
- Terminal Types: They have various terminal types, including feed-through, wire leads, solder terminals, and screw terminals, allowing for easy connection to circuits.
- Sizes: Slide switches come in subminiature, miniature, and standard sizes.
- Actuator Styles: The handle or actuator can be flush or raised, depending on the design and application.
- Features: Some slide switches have additional features like pilot lights, illuminated switches, and wiping contacts.
Specific Applications:
- Power Control: Used to turn devices on or off.
- Mode Selection: Used to choose different operating modes in devices.
- Circuit Switching: Used to switch between different circuits in various applications
- Low Voltage Circuits: Commonly used in circuits with low voltage.

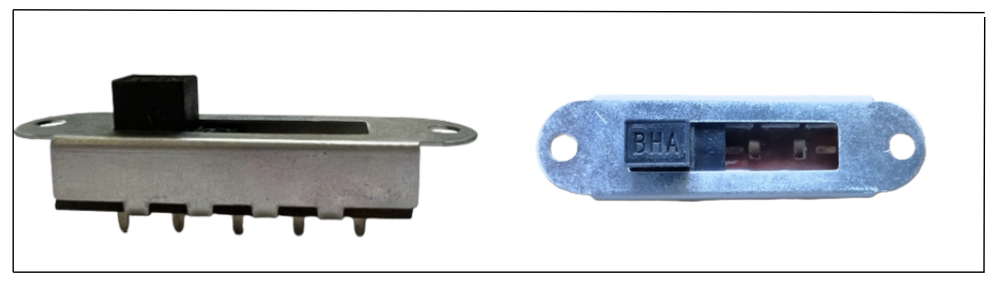

SLIDE SWITCH 2 POLE WAY
A 2-pole 4-way slide switch is an electromechanical switch that can control two separate circuits (2 poles) and offers four selectable positions (4 ways). It works by sliding a knob or actuator to change the electrical connection paths. Each position redirects the electrical flow to a different output, making it useful for applications requiring multiple input/output configurations, such as selecting between different power sources, audio channels, or operating modes.
DATA SHEET
| Sr. No. | Components | Requirement |
|---|---|---|
| 1 | Body | PCRC (M.S) with Trivalent Zinc Plating |
| 2 | Shaft | ABS |
| 3 | Terminal | PCB |
| 4 | Contact | Brass with silver plated |
| 5 | Contact Lubrication | FA DUCAL Lub. (Dielectric M4 grease) |
| 6 | Current Rating | Up to 2 Amp. |
| 7 | Minimum Contact Resistance | 10 (Mo) |
| 8 | Maximum Contact Resistance | 20 (Mo) |
| 9 | Operating Force | 550–650 grams |
| 10 | Endurance test without load | 60,000 cycles (above) |
| 11 | Endurance test with load | 30,000 cycles (above) |
SPECIAL REQUIREMENTS
One of the Thermostat & Controls specialism is solving customers problems, whether that is advising about switch choice selection or offering a custom solution to meet your design challenge. We have a wide experience with slide switches with T&C’s having thousands of standard PNs from more than 15 series in the catalogs to satisfy customers’ requirements for specific switch functionality, size, load, and life. All our products can be customized on demand, whether that is by adding a custom actuator height, a specific operating force, upgraded materials for reflow soldering process, or gold plating used in the damp environment that may also contains sulfide. Please contact us to discuss your special requirements with our Engineering team by clicking here.
